Removing The Stop Lamp

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

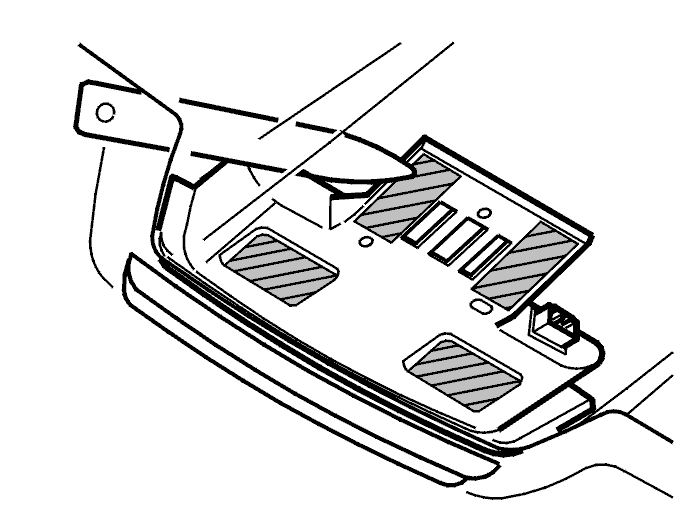

Fig 1: Identifying Stop Lamp Removal
GLL103131Courtesy of VOLVO CARS OF NORTH AMERICA.
WARNING:

The stop lamp must be removed from the headlining. Do this carefully as the headlining is made of corrugated cardboard.

Use a weatherstrip tool to cut as close to the stop lamp tape as possible. This is to avoid damaging the headlining.

Start with the two pieces of tape on the section that points forwards. Then cut the two pieces of tape closest to the rear windshield.

Do one corner at a time.
