Connecting the breakout box
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition off
- Remove the fuses

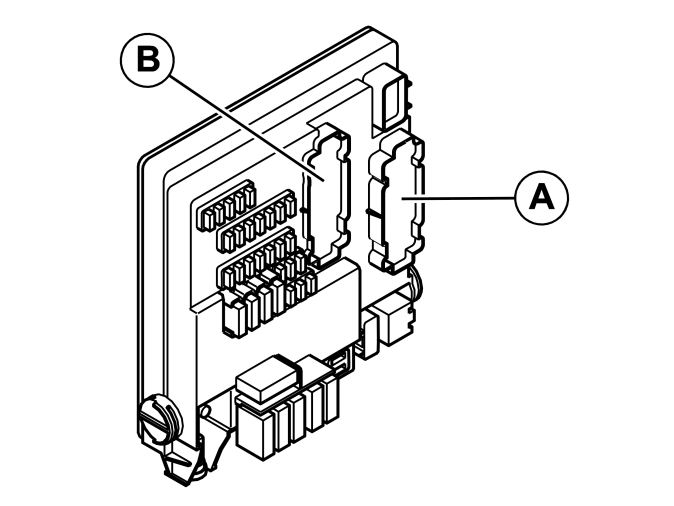

- To expose the rear electronic module (REM) connectors:
- For -2004, see: Integrated relay/fusebox cargo compartment/Rear electronic module (REM), replacing
- For 2005-, see: Rear electronic module (REM), replacing .
Connect breakout box 9511428 to the adapter.
Rear electronic module (REM)
- Connect adapter
9512971
to the control module connectors A, B, C, D and F.
HINT: Connectors A, B and D cannot be plugged in simultaneously. Neither can connectors C and F be plugged in simultaneously.
- For connector A, terminals #A1-#A32 correspond to terminals #1-#32 on the breakout box
- For connector B, terminals #B1-#B32 correspond to terminals #1-#32 on the breakout box
- For connector C, terminals #C1-#C14 correspond to terminals #41-#54 on the breakout box
- For connector D terminals #D1-#D36 correspond to terminals #1-#36 on the breakout box
- For connector F, terminals #F1-#F10 correspond to terminals #41-#50 on the breakout box.
NOTE:
The removed fuses must be reinstalled before the control module can be checked and measurements taken.
