Rear Disc Brake Pads: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Volvo S80, 2004 Volvo S60, 2003 Volvo S80, 2003 Volvo S60, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Remove the securing spring (3) carefully so that it does not deform. See Fig 2.
Remove the protective caps (1) from the two locating pins (2). See Fig 2.
Remove the locating pins using a 7 mm hex socket.
Remove the brake caliper from the holder.
Remove the brake pads. See Fig 3.

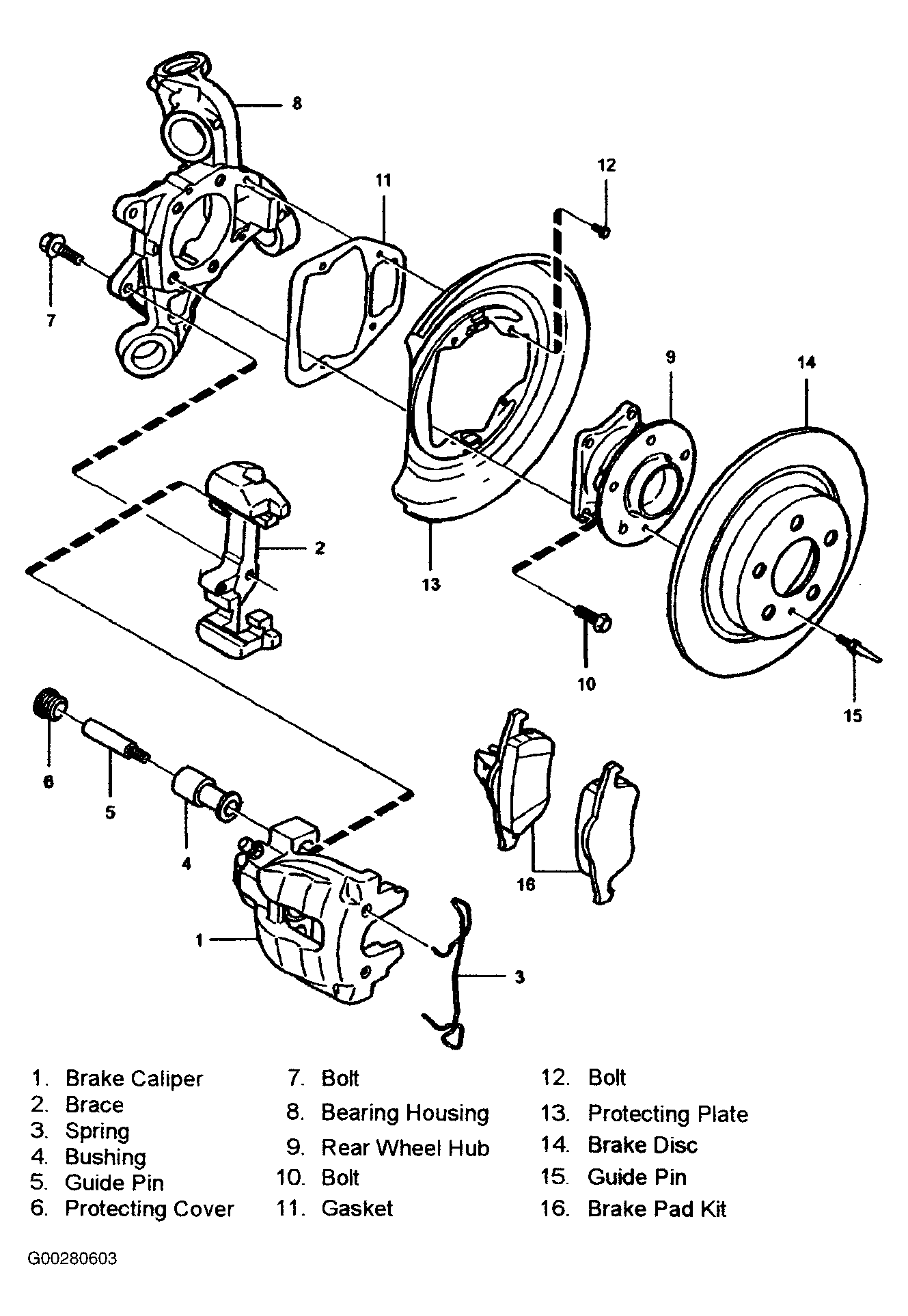

Fig 1: Exploded View Of Rear Brake System

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Removing Securing Spring, Caps & Pins - Rear Brakes

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Removing Rear Brake Pads

Courtesy of VOLVO CARS OF NORTH AMERICA.
