Rear Brake Disc: Removal

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Volvo S80, 2004 Volvo S60, 2003 Volvo S80, 2003 Volvo S60, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the panel covering the parking brake lever.
  2. Release the parking brake adjuster.
  3. Remove the brake caliper and the brake pads. See REAR DISC BRAKE PADS .
    4. NOTE: Manufacturer recommends using new caliper holder bolts during installation.
  4. Remove and discard both the mounting bolts (4) for the caliper holder. See Fig 1. Remove the holder.
  5. Remove the locating pin (5) and the brake disc. See Fig 1.

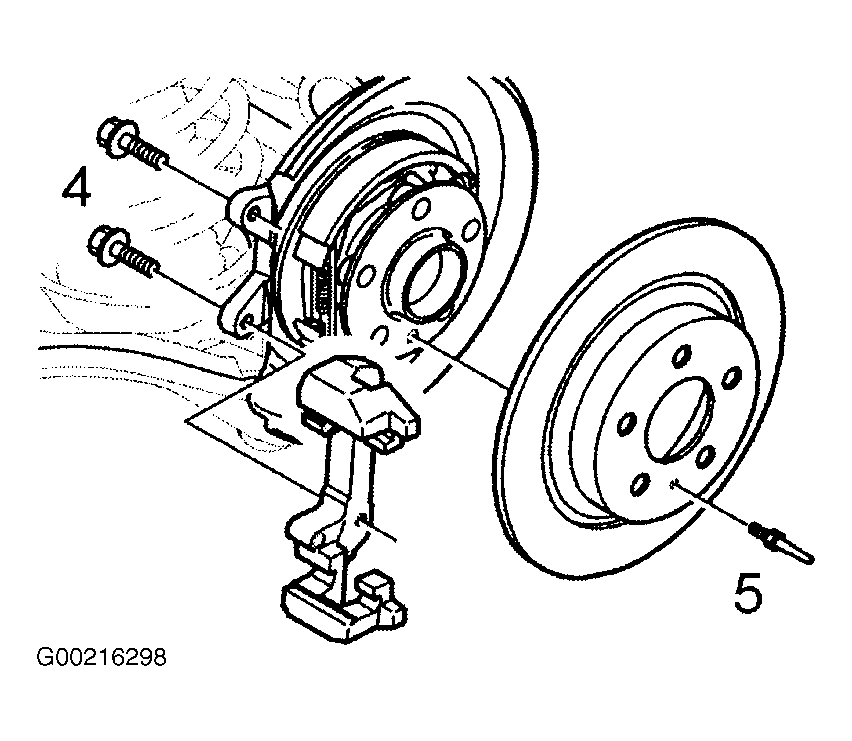

Fig 1: Removing Rear Brake Disc
G00216298Courtesy of VOLVO CARS OF NORTH AMERICA.
