Front Wheel Hub

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Volvo S80, 2004 Volvo S60, 2003 Volvo S80, 2003 Volvo S60, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel to be measured.
  2. Remove mounting screws for brake caliper holder. Hang caliper from spring using a wire.
  3. Remove brake disc.
  4. Install bracket included in Measurement Tool Set (999 5418). See Fig 1.
  5. Install dial indicator in the bracket. See Fig 1.
  6. Place dial indicator point against hub flange. See Fig 2.
  7. Rotate hub and note dial indicator run-out. If lateral run-out exceeds specifications, replace hub. See DISC BRAKE SPECIFICATIONS .
  8. To install, reverse removal procedure. Tighten brake disc locating pin and brake caliper holder to specifications. See TORQUE SPECIFICATIONS .

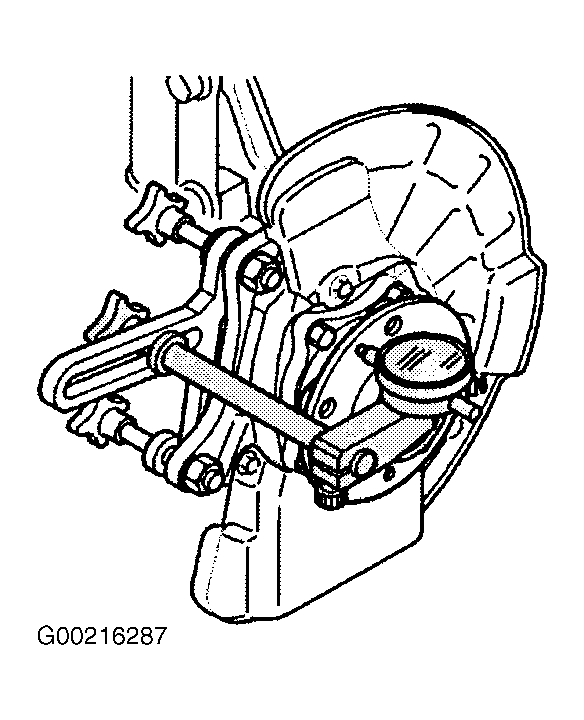

Fig 1: Installing Dial Indicator For Front Hub
G00216287Courtesy of VOLVO CARS OF NORTH AMERICA.

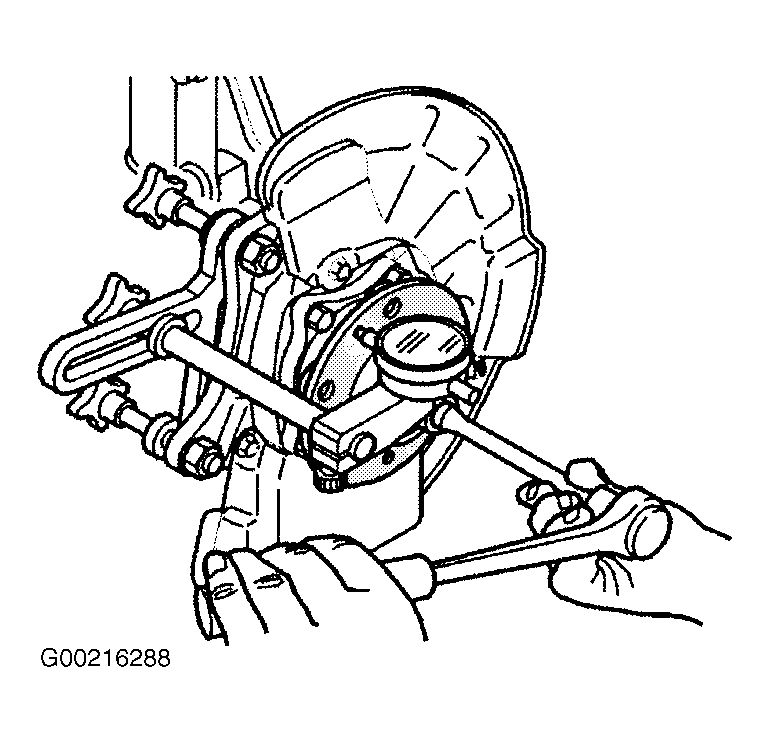

Fig 2: Measuring Lateral Run-Out Of Front Hub
G00216288Courtesy of VOLVO CARS OF NORTH AMERICA.
