Parking/Emergency Brake

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2004 Volvo S80, 2004 Volvo S60, 2003 Volvo S80, 2003 Volvo S60, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not adjust too much at one time, as binding of rear brakes can occur.
  1. Remove dust boot on parking brake lever by pulling straight up. Fold up plastic cover.
  2. Identify adjustment nut. See Fig 1. Adjust parking brake to fully applied between second and fifth click on parking brake ratchet.

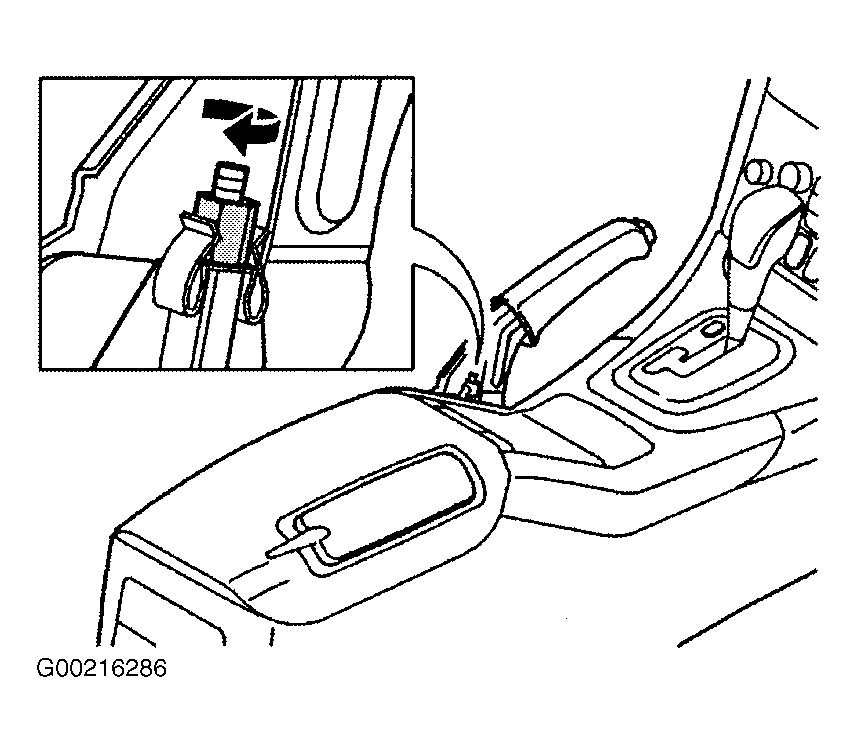

Fig 1: Adjusting Parking Brake
G00216286Courtesy of VOLVO CARS OF NORTH AMERICA.
