Snow Chains: Preparations

Fig 1: Stretching Out Snow Chain

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Stretch out the chain and fold out the four arms.

Fig 2: Pressing Yellow Button & Pulling Adapter Off Mounting Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the yellow button. Pull the adapter (A) off the mounting arm (B).

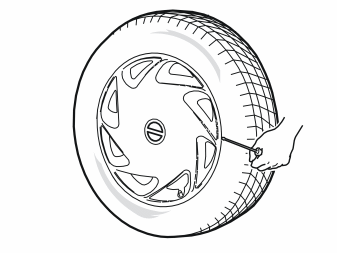

Fig 3: Removing Hub Caps

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies to cars with steel rims or hub caps on light-metal alloy rims

• Remove the hub caps.
