Installing Tie Rod

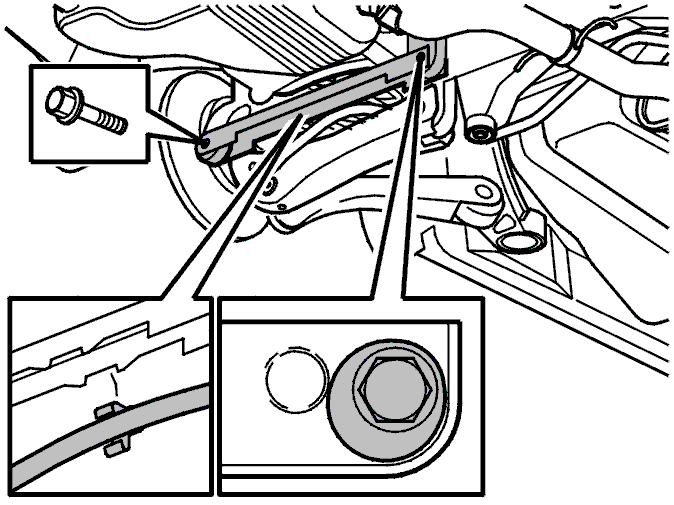

Fig 1: Inner And Outer Tie Rod Retaining Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the tie rod
• the inner and outer retaining screws for the tie rod. Do not tighten yet
• the mounting for the parking brake cable.

Press the suspension up to its normal position, see Normal position .

Tighten the outer screw for the tie rod. Tighten to 80 Nm  .

Tighten the eccentric screw and nut. Tighten to 80 Nm  .

Remove the mobile jack.

Fig 2: Spring Strut From Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the spring strut on the lower control arms. Use a larger jimmy bar to bend the control arm down and align the spring strut against the control arm. Tighten the spring strut. Tighten to 80 Nm  .

Install the wheel. See Installing wheels .

Align the wheels. See Wheel alignment, checking / adjusting .
