Installing The Bushing

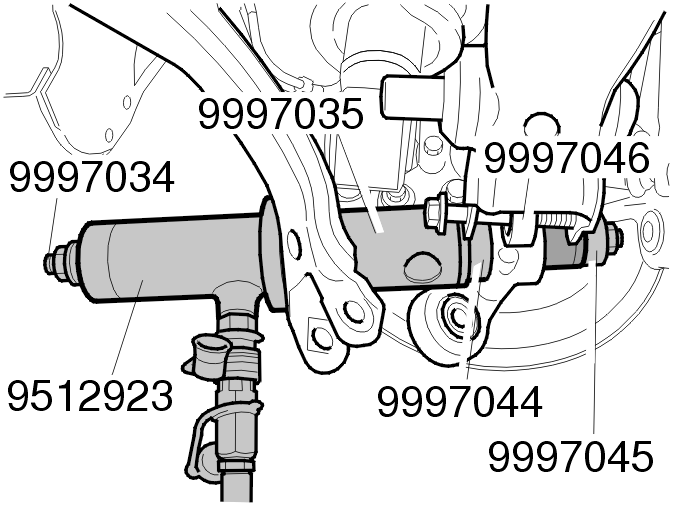

Fig 1: Installing Hydraulic Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: 8 mm Of Bushing Must Be Visible

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bushing.
NOTE:
8 mm of the bushing must be visible when in the correct position.
Remove the hydraulic cylinder.
