Removing The Upper Front Control Arm Bushing

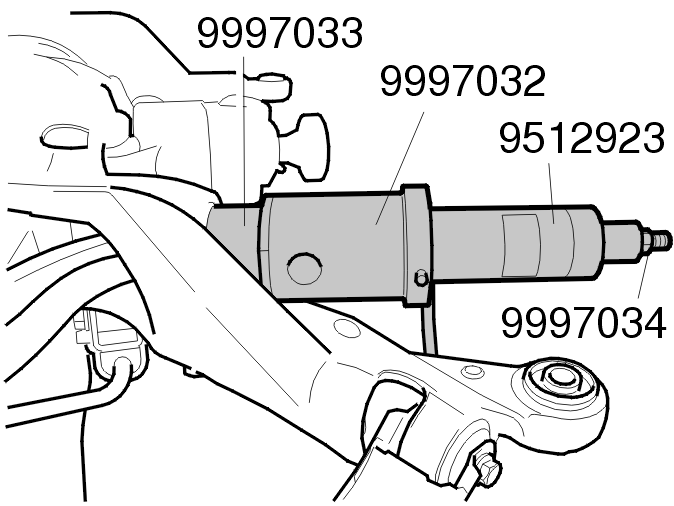

Fig 1: Installing Hydraulic Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Use tool: 9512923 with 9997054 , 9997032 and 9997033
• Remove the screws for the inner control arm mountings (x2)
• Install the hydraulic cylinder and pull out the front bushing using the control arm.

Remove:

• the hydraulic cylinder
• the control arm.
