Disconnecting The Control Arm

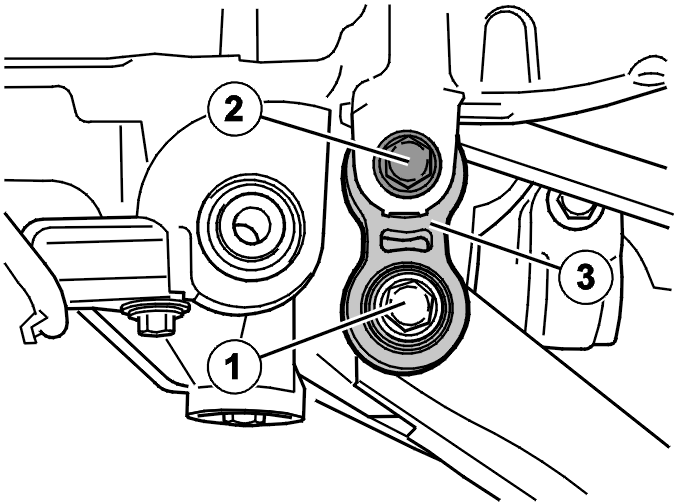

Fig 1: Screw For Control Arm Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screw for the inner control arm mounting (1)
• the screw for the upper control arm mounting (2)
• the control arm (3).

Press down the control arm.
