Baby insert

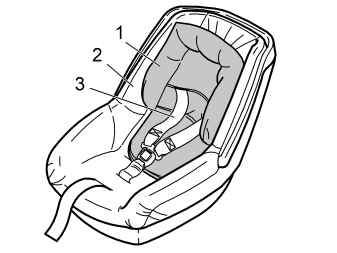

Fig 1: Identifying Position Of Baby Insert In Child Seat Upholstery With Shoulder Straps Threaded Through Holes In Baby Insert

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the baby insert (1) towards the child seat upholstery (2)
Thread the shoulder straps (3) through the holes in the baby insert. Select the group of holes which suit the size of the child.

NOTE:

Ensure that the shoulder straps are not twisted.
