Removing upholstery from center backrest cushion (second row)

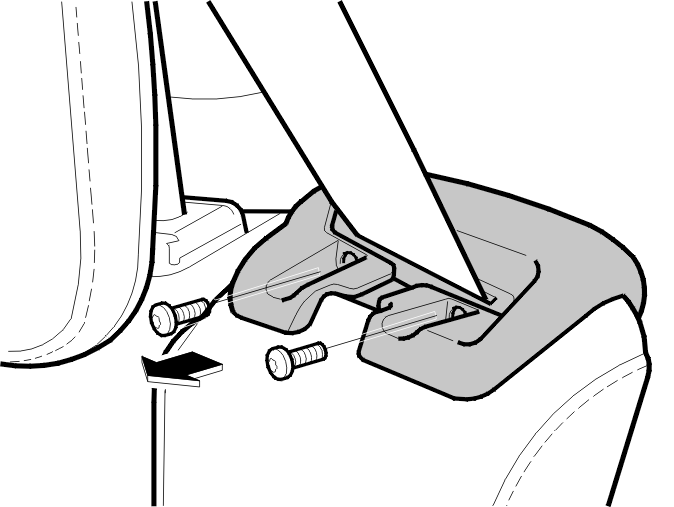

Fig 1: Identifying Screws For Seat Belt Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

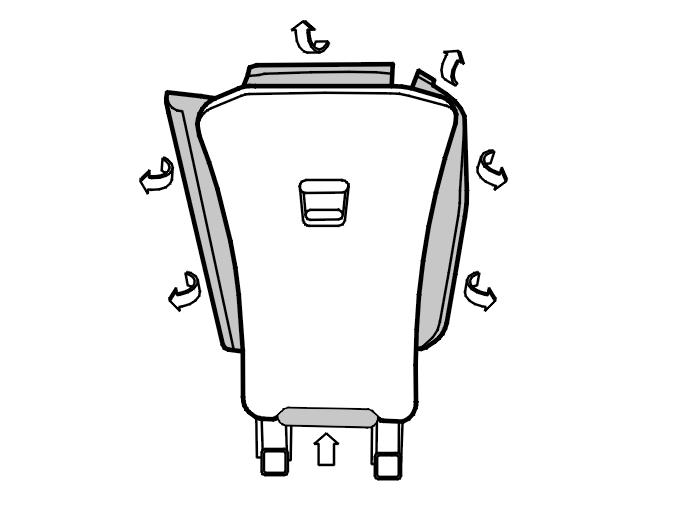

Fig 2: Identifying Weatherstrip Folded Out From Channel In Rear Section

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold out the weatherstrip from the channel in the rear section.

Remove the upholstery.

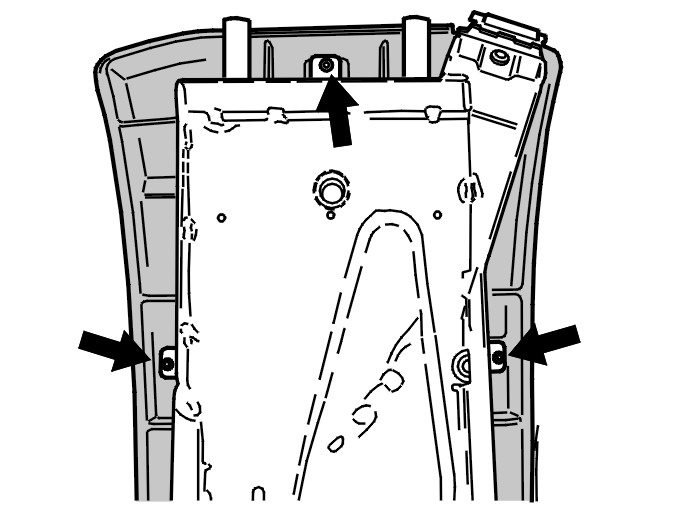

Fig 3: Locating Screws And Rear Section

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fold up the upholstery.

Remove:

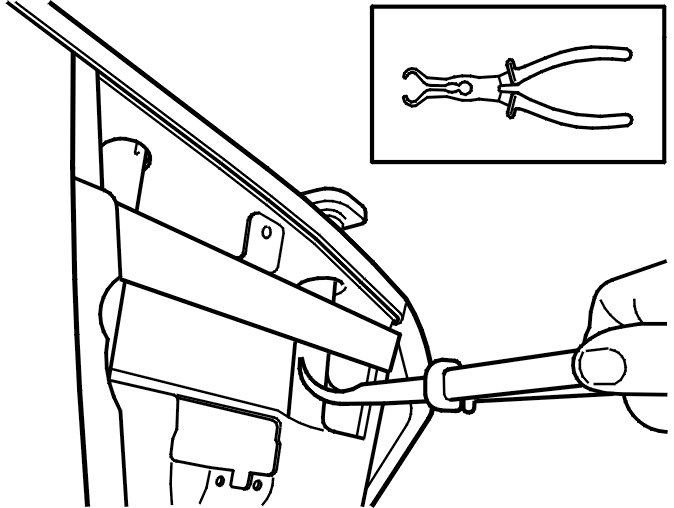

Fig 4: Pulling Guide Sleeves Straight Up

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the catches.

Pull the guide sleeves straight up.

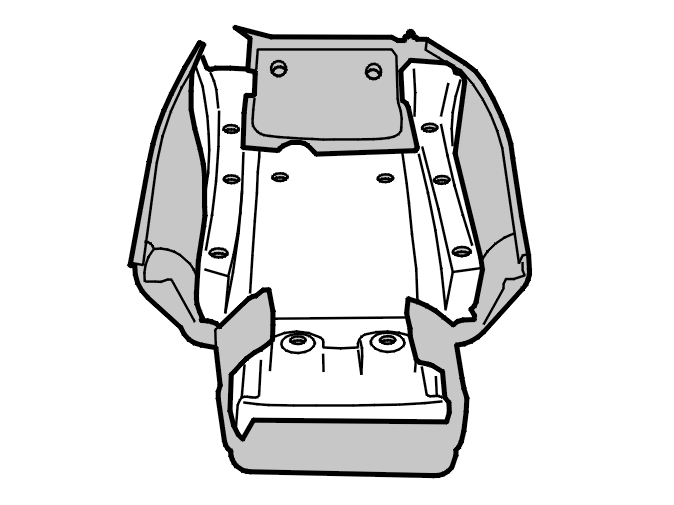

Fig 5: Identifying Detachment Of Upholstery From Clip In Cushion

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Detach the upholstery from the clip in the cushion.
