Removing the rear bumper

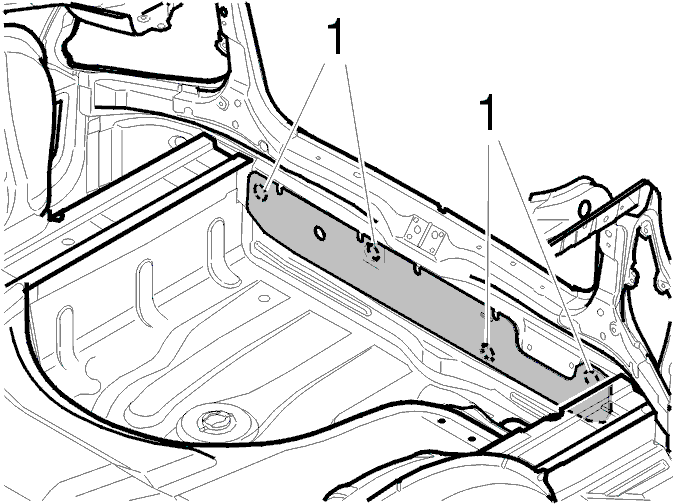

Fig 1: Identifying Base Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the floor hatch
• the battery. See Battery, replacing
• the cover and soundproofing on the right-hand side
• the sub-woofer if applicable.

Fold the soundproofing up where it covers the four holes.

Remove the 4 screws.

HINT: Use butyl tape to secure the nuts in the socket. Otherwise the nuts are easy to lose.

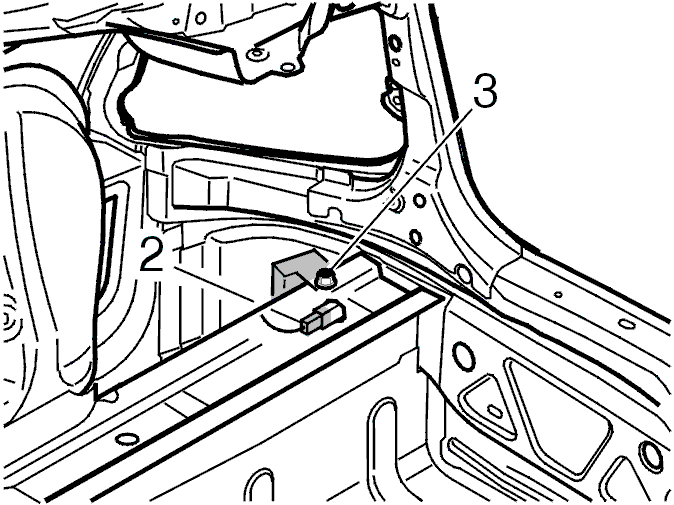

Fig 2: Identifying Antenna Amplifier Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector from the antenna amplifier or remove the screw (3).

Remove the bracket.

Fig 3: Identifying Rivet Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the rivets (4), 1 on each side. See Removing rivet .

Fig 4: Identifying Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the screws (5), 1 on each side, leaving each screw held in place by 3 threads.

Press the screws backwards so that the slide mounting releases from the bumper casing.

Press the screw so that the screw head bottoms out.

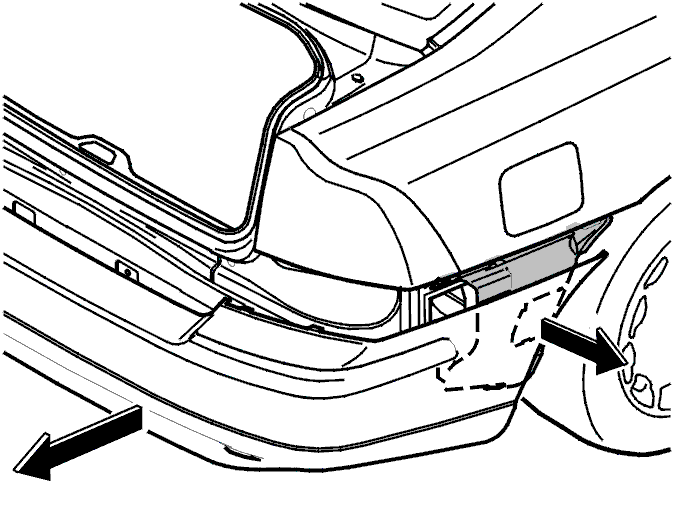

Fig 5: Identifying Bumper Pulled Backwards & Sides Pulled Outwards To Release From Slide Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bumper backwards while pulling both the sides outwards so that the edges release from the slide mounting.

HINT: This operation is easier with two people.
