Installing the rear bumper

WARNING: This page is about a different variant/trim than selected.

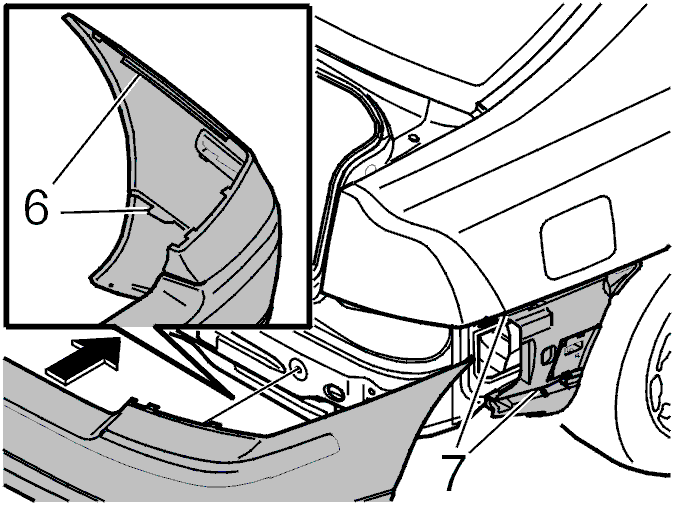

Fig 1: Identifying Lugs Aligned On Bumper In Channels On Slide Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

In reverse order.

NOTE:

Align the lugs (6) on the bumper in the channels (7) on the slide mounting.

Press at the top so that the lugs secure.

HINT: Two people are required for this task.

Fig 2: Identifying Rivet Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Replace the rivets (4) with spring nuts and screws.

Fig 3: Identifying Spring Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install 1 spring nut on each side.

Fig 4: Identifying Screw On Each Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install 1 screw on each side. Tighten.
