Checking the 30-supply
WARNING: This page is about a different variant/trim than selected.

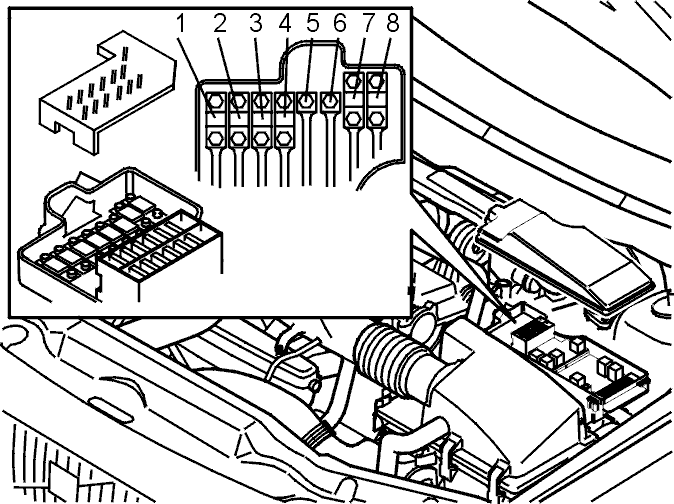

Check fuses 11A/4 and 11C/25.
Check the power cable between fuse 11A/4 and fuse 11C/25 for an open-circuit or a short-circuit to ground.
HINT: If the VCT2000 is connected and the green LED lights then fuse 11A/4 is OK.
Remedy as necessary.
Other information:
- Continue
Refer to Checking the 30-supply continued
