Checking the mechanism

Check whether the mechanism moves during sun roof operation.

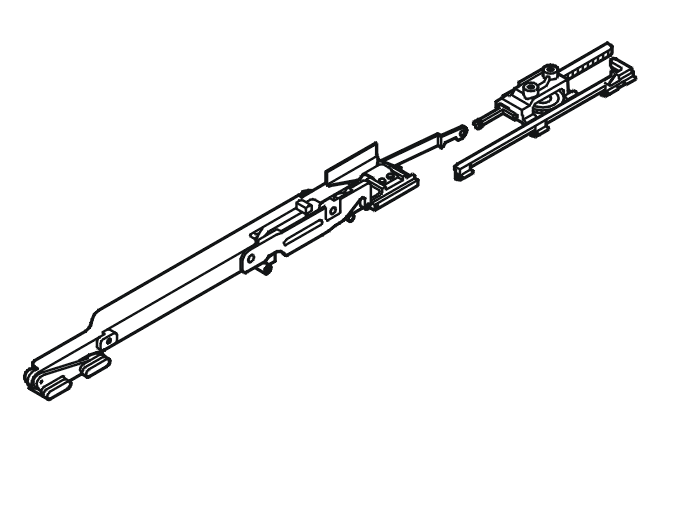

Fig 1: Identifying Sun Roof Mechanism

Courtesy of VOLVO CARS OF NORTH AMERICA.

Does the mechanism move?

• YES

  Refer to Checking sun roof installation

• NO

  Refer to Checking voltage

Fig 1: Identifying Ignition Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off

  Check the sun roof mechanism.

  Remedy as necessary.

  Other information

  • Mechanism / mechanical cable sun roof, replacement
  Fig 2: Identifying Sun Roof Mechanism

  Courtesy of VOLVO CARS OF NORTH AMERICA.

• Continue

  Refer to Functionality check
