Installing the front camshaft seal

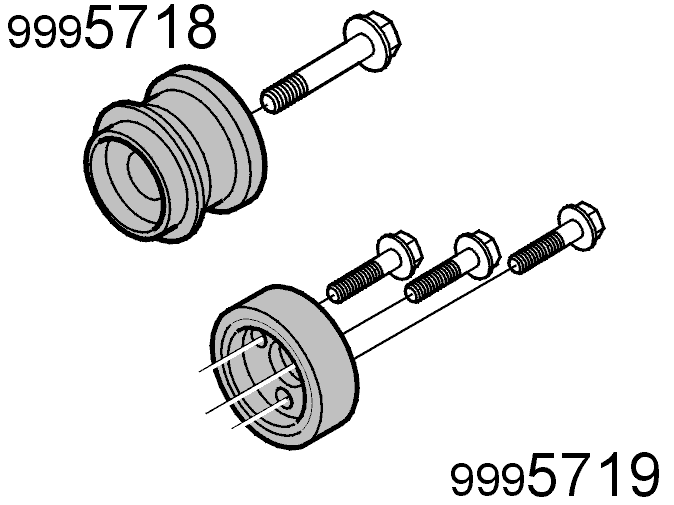

Fig 1: Identifying Special Tools 99 5718 And 99 5719

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the surface of the seal that the camshaft rotates against. Install the camshaft seal. For camshafts with variable valve timing:

Use drift 9995718 .

Use the mounting screw for the variable valve timing unit. Tighten until the drift bottoms out. for camshafts without variable valve timing:

Use drift 9995719 .
