Removing center tunnel console

Remove:

• the arm rest at the center console according to the following three alternatives:

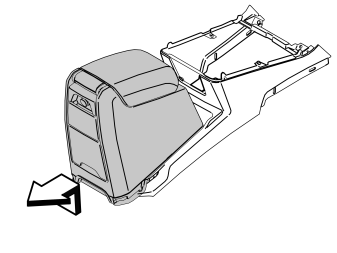

• Alt 1  Release handle at the arm rest's lower rear edge, pull backwards.

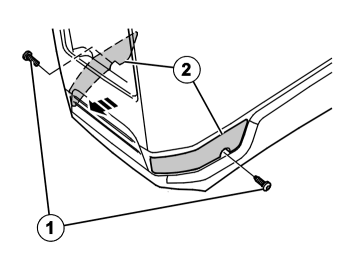

• Alt 2  Remove the 2 x screws (1). Press in the catches (2), pull backwards.
• Alt 3  Remove the 2 x covers (2). Remove the 2 x screws (1), pull backwards.

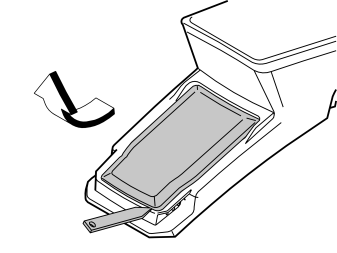

• the cover.

• the gear shift selector panel.

Press the frame out of the gear shift selector panel.

Remove:

• the side panels, left and right.

• the connectors from the cable holder

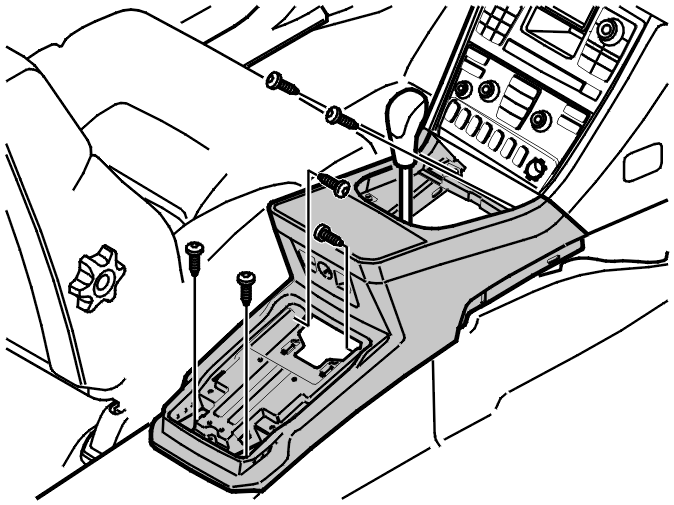

• the 6 screws.

Lift out the center tunnel console.
