Setting the Geographical Area

Switch on the ignition.

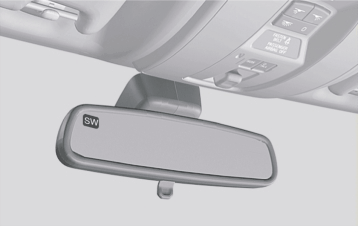

Fig 1: Identifying Compass Button

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the button for at least 3 seconds. The graphic for the set range (1-15) is then displayed.

Europe

Press the button repeatedly until the number (1-15) for the relevant area is displayed. After approximately 4 seconds the display reverts to the compass direction.

Fig 2: Identifying Europe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Africa

Fig 3: Identifying Africa

Courtesy of VOLVO CARS OF NORTH AMERICA.

Canada

Fig 4: Identifying Canada

Courtesy of VOLVO CARS OF NORTH AMERICA.

USA

Fig 5: Identifying USA

Courtesy of VOLVO CARS OF NORTH AMERICA.

South America

Fig 6: Identifying South America

Courtesy of VOLVO CARS OF NORTH AMERICA.

Asia

Fig 7: Identifying Asia

Courtesy of VOLVO CARS OF NORTH AMERICA.

Australia

Fig 8: Identifying Australia

Courtesy of VOLVO CARS OF NORTH AMERICA.
