Rear Brake Disc: Removal

NOTE: Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, see JACKING POINTS BODY

Remove the wheel, see WHEELS

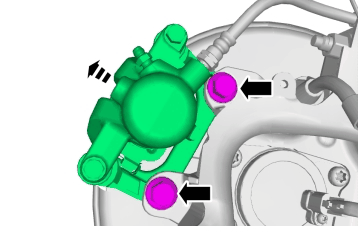

Fig 1: Rear Break Caliper Mounting Bolts

Courtesy of VOLVO CARS CORPORATION

WARNING: Make sure that no load is placed on the brake hose.

Torque: Mount rear brake caliper

110 Nm

Fig 2: Brake Disc Assembly Screw

Courtesy of VOLVO CARS CORPORATION

Torque: Rear brake disc to wheel hub

35 Nm

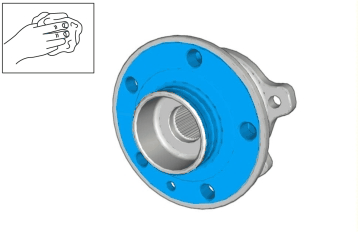

Fig 3: Identifying Area To Be Cleaned

Courtesy of VOLVO CARS CORPORATION

NOTE: Make sure that the mating faces are clean and free of foreign material.
