Wheel Hub Front, Checking: Check

Remove the front brake disc, see FRONT BRAKE DISC

Fig 1: Identifying Special Service Tools

Courtesy of VOLVO CARS CORPORATION

see 9995418

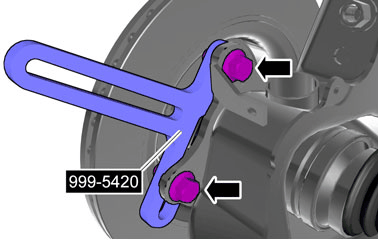

Fig 2: Identifying Special Service Tool

Courtesy of VOLVO CARS CORPORATION

see 9995420

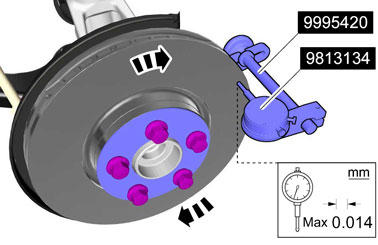

Fig 3: Identifying Special Service Tools

Courtesy of VOLVO CARS CORPORATION

Slowly rotate the brake disc and note the dial indicator gauge readings.

see 9995420 see 9813134

Replace wheel bearing front, see WHEEL BEARINGS AND WHEEL HUBS, FRONT

Perform brake disc front, checking, see BRAKE DISC FRONT, CHECKING
