Installing The Clamp Ring

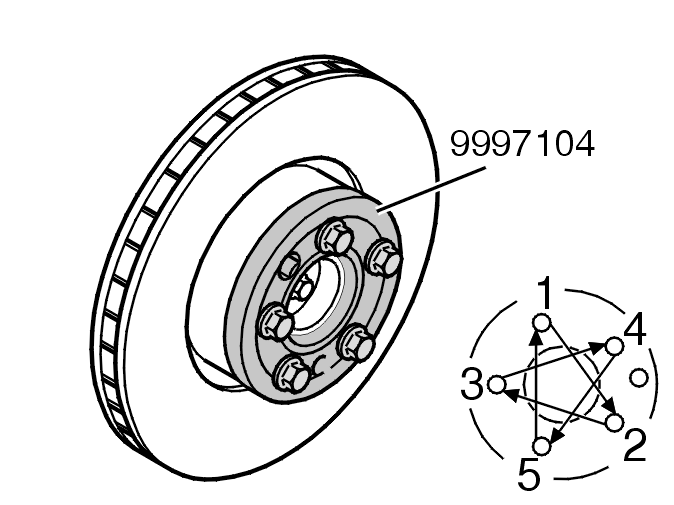

Fig 1: Installation of Special Tool (9997104)

Courtesy of VOLVO CARS CORPORATION

Install: see 9997104 , included in test tool kit: see 9995418 , on the hub with the wheel nuts.

Ensure that mating surfaces on the brake disc and clamp ring are clean.

Tighten the studs lightly. Then tighten the screws crosswise. Tighten to 90 Nm.

When tightening with impact wrench, use: see 9814031 .
