Guidelines For Bleeding

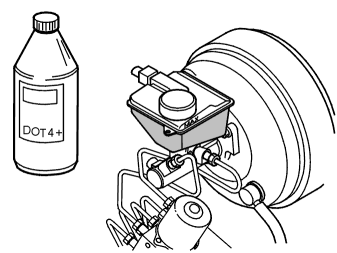

Fig 1: Brake Fluid And Reservoir
GLL104526Courtesy of VOLVO CARS CORPORATION

When reconditioning or replacing brake calipers bleed the relevant brake pipe as follows.

The brake pedal must be depressed throughout the operation. This is so that the brake system is not drained of brake fluid.

If the braking system has been completely or partly drained, bleed the whole system. A bleeding unit that can pressurize the brake system to 0.2-0.3 Mpa must be used.

NOTE: Use only Volvo Genuine brake fluid (Volvo DOT 4+). Never  reuse brake fluid. Always keep brake fluid well sealed in its original packaging.
