Snow Chain Components

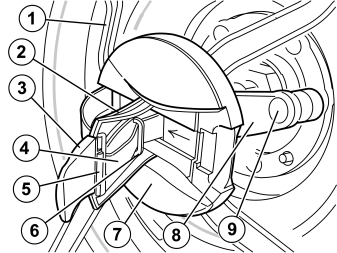

Fig 1: Identifying Snow Chain Components 1 of 2

GLL119663

Courtesy of VOLVO CARS OF NORTH AMERICA.

1 = arm
2 = lever
3 = safety release
4 = tensioner strap
5 = quick-tensioner
6 = strap girdle
7 = housing
8 = mounting arm
9 = yellow button.

Fig 2: Identifying Snow Chain Components 2 of 2

GLL119664

Courtesy of VOLVO CARS OF NORTH AMERICA.

10 = adapter wheel stud
11 = stud element with shortening point
12 = chain net
13 = wheel, outside
14 = wheel, inside.
