Installing The Snow Chains

NOTE:

The snow chains must only be installed on the front wheels. All operations must be carried out on both the front wheels

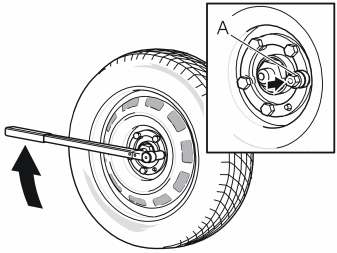

Fig 1: Pressing Suitable Adapter Into Place On Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press a suitable adapter (A) into place on the wheel
Tighten the adapter. Tighten to 70 5 Nm (52 3.7 lbf. ft.) . Use a torque spanner or a socket set.
NOTE:
Do not use impact drivers.
Ensure that the adapter is securely installed.

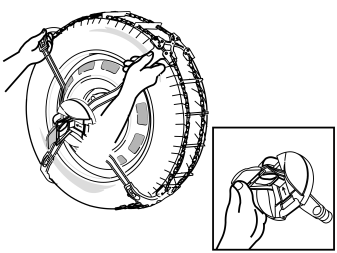

Fig 2: Opening Safety Catches

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Pulling Lever Past Its Catch Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Pressing In Yellow Button On Mounting Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press in the yellow button (A) on the mounting arm (B). Adjust the handle on the mounting arm so that it is pointing towards the center of the hub.
NOTE:
The mounting arm must be installed in this way.
Press the mounting arm on to the adapter until the catches engage.
NOTE:
The yellow button must spring back to its original position.
Ensure that the catches are secure on the adapter.
