Adjusting The Tension Of The Chain

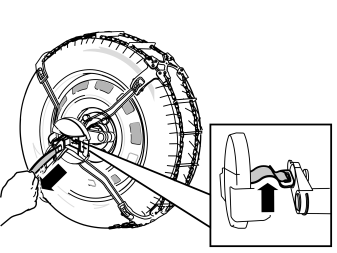

Fig 1: Tightening Tensioner Strap Until It Is Fully Tensioner Between Housing & Mounting Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Tighten the tensioner strap until it is fully tensioned between the housing and the mounting arm. The quick-tensioner locks the strap in the tensioned positioned.
  NOTE:

  The inset picture shows the correct strap tension.

Fig 2: Threading End Of Tensioner Strap Through Girdle & Through Housing Following Markings

Courtesy of VOLVO CARS OF NORTH AMERICA.

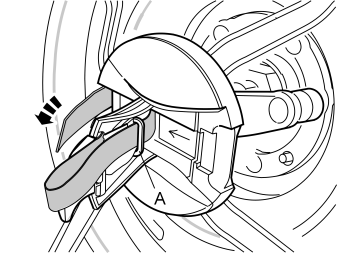

• Thread the end of the tensioner strap through the girdle (A) and through the housing following the markings.

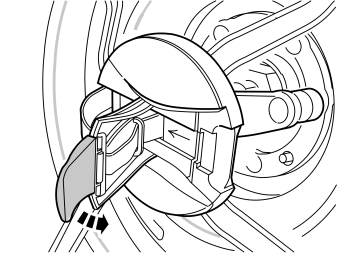

Fig 3: View Of Close Lever

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Close the lever.

Fig 4: Pressing Safety Catches To Locked Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the safety catches to the locked position.

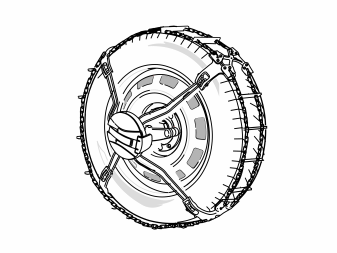

Fig 5: Drive Forward Or Backwards Carefully So That Chains Pulls Itself Up Onto Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Drive forward or backwards carefully so that the chains pulls itself up onto the wheel.
  NOTE:

  If installing when on an incline; drive downwards if possible.

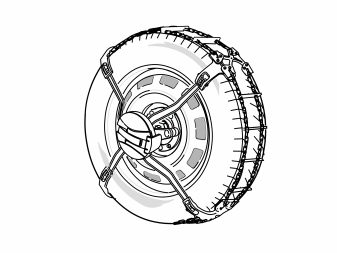

Fig 6: Check Tension Of Tensioner Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

The tensioner strap must be tensioned when the chain net is in place.

• Check the tension of the tensioner strap. If the tensioner strap is still loose, tighten it further.
