Installing ISOFIX

Installation of ISOFIX on the side where the seat belt's single buckle is located.

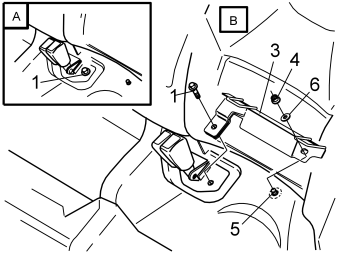

Fig 1: Identifying Installation Of ISOFIX On Side Of Seat Belt's Single Buckle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Installation of ISOFIX on the side of the car where the seat belt's double buckle is located.

Fig 2: Identifying Installation Of ISOFIX On Side Of Seat Belt's Double Buckle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carry out on both sides

• Remove the screw (1). For the single buckle - remove the middle seat belt's end mounting (2).
• Replace the screw (1) with a new screw from the kit.
• Expose the existing stud (5) by removing the perforated part of the insulation under the ISOFIX bracket (3).
• Position the ISOFIX bracket (3) as illustrated.
• Install the screw (1). For the single buckle - together with the middle seat belt's end mounting (2).
• Install nut (4) and washer (6), from the kit.
• Tighten the screw (1) to 40 Nm (30 lbf. ft.)  and then tighten nut (4) to 30 Nm (22 lbf. ft.)  .
