Removing the spring strut

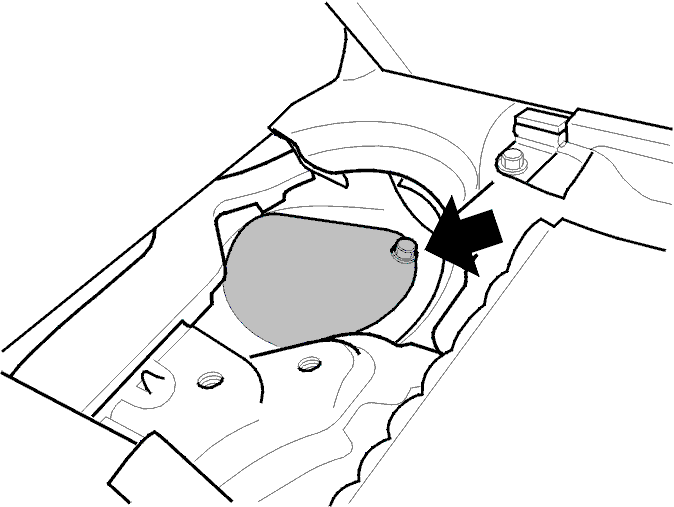

Fig 1: Identifying Insulation Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Angle up the insulation panel.

Remove the screw holding the cover and shock absorber.

Raise the car.

Fig 2: Identifying Spring Strut From Lower Control Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the wheel
• the spring strut from the lower control arm.

Fig 1: Identifying Spring Seat Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the screws from the spring seat
• the spring strut.
