Installing and tightening screws for the transmission

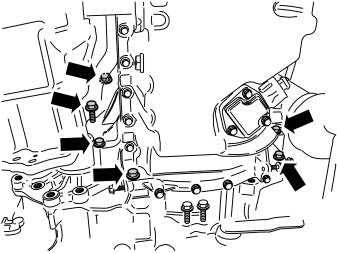

Fig 1: Locating Transmission Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the 6 M10 screws securing the transmission to the engine.

First tighten alternately and crosswise to light  contact.

At the same time, check that the whole of the transmission is in contact with the engine.

Then tighten the screws to light  contact crosswise to the transmission/engine. Tighten.

Remove the fixture from the transmission.
