Installing the gear selector assembly stop on the gear selector assembly

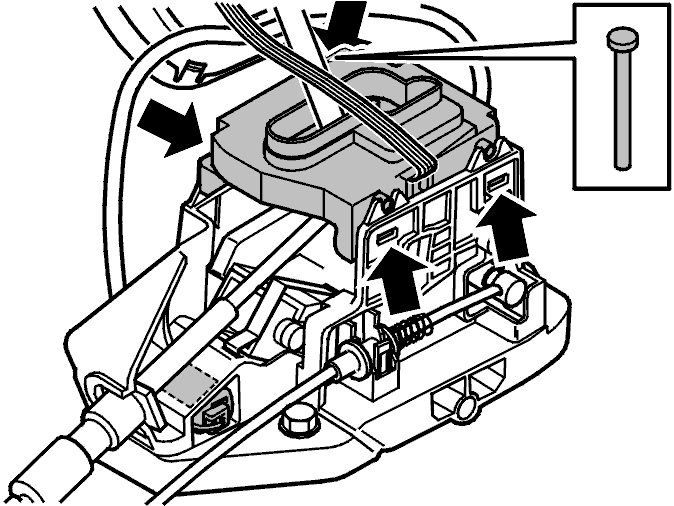

Fig 1: Installing Gear Selector Assembly Stop On Gear Selector Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the gear selector assembly stop and press it into place in the gear selector assembly
• the yellow lock pin.

Check that the gear selector assembly stop is securely in place.

Connect the connectors.

Connect the rear connector to the gear selector assembly. Angle the front connector into the gear selector assembly.

Secure the wiring to the gear selector assembly.
