Removing the control arm from the ball joint

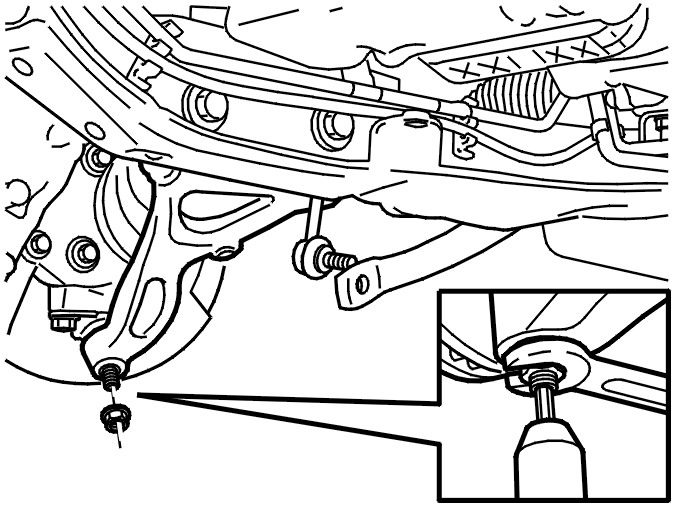

Fig 1: Removing Control Arm From Ball Joint

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nut from the ball joint on both sides. Counterhold using a Torx wrench so that the ball joint boot is not damaged.

Press out the ball joints. Use special tool 9997062 .

Fig 2: Identifying Drive Shaft Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull down the control arm (1) using a tension strap (2).

Release the spring strut from the control arm and drive shaft.
