Removing the Backrest Upholstery And Foam
Courtesy of VOLVO CARS OF NORTH AMERICA.

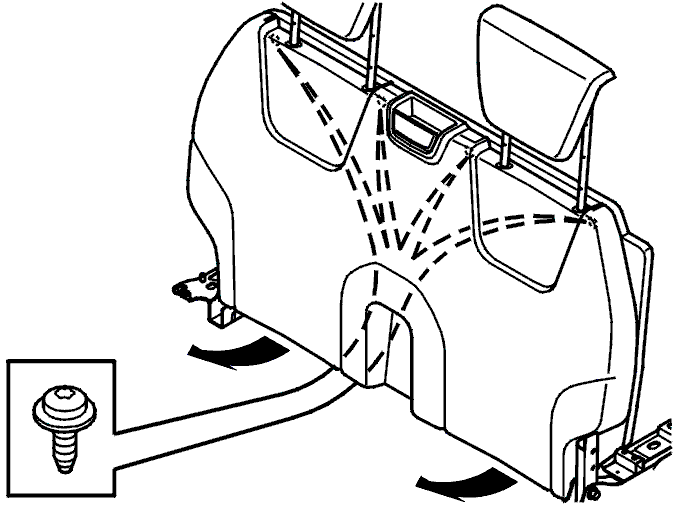

- Detach the bottom edge of the upholstery by pulling it straight out
- Always pull at the mounting points
- Remove the four screws. Remove the staples on each side of the opening handle.
