Installing The Front Bumper Rail

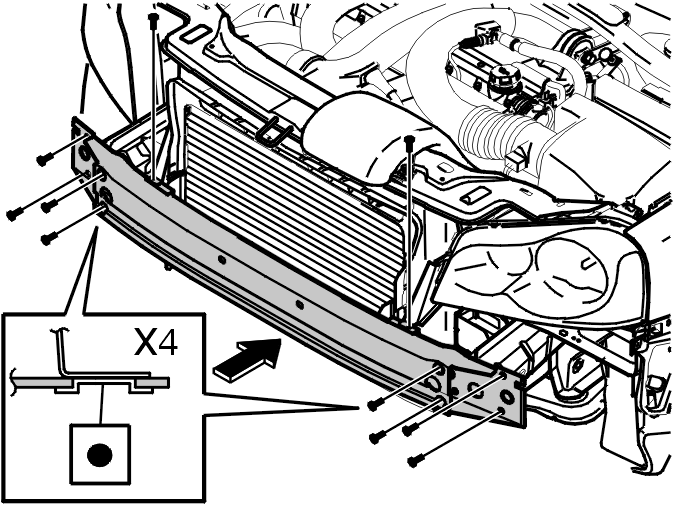

Fig 1: Installing The Front Bumper Rail

GLL103301

Courtesy of VOLVO CARS CORPORATION

Install:

the member
the 4 screws. M10. Tighten.

Spot-weld.
