Lock and alarm components

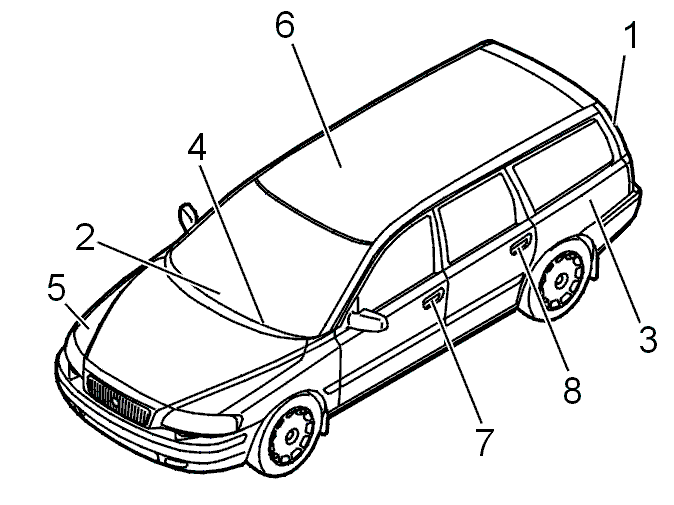

Fig 1: Identifying Lock And Alarm Components
GLL117952Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Lock unit, trunk lid and switch, cargo compartment lighting
  2. Sun sensor and alarm LED
  3. Level sensor for the alarm
  4. Immobilizer antenna unit
  5. Siren
  6. Movement sensor for the alarm
  7. Front door lock unit
  8. Lock unit rear door.
