Removing center seat (second row)

Fig 1: Identifying Disconnected Battery Lead

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the battery lead: Battery, disconnecting
• the outer seat: Removing outer seat (second row) .

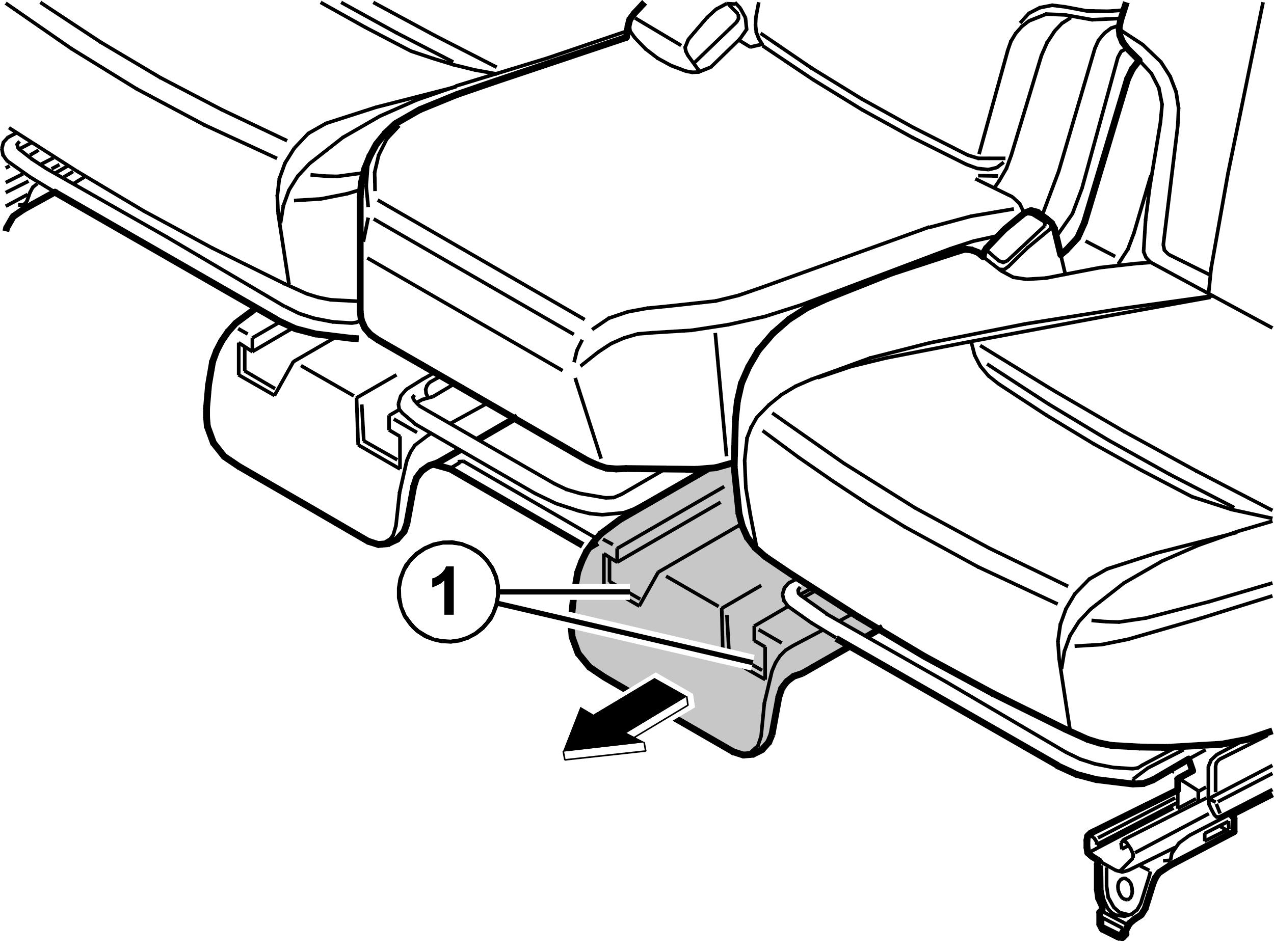

Fig 2: Identifying Removal Of Front Side Pieces

Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connector under the seat.

Remove the 4 side pieces on the seat over the screws.

Pull the front side pieces straight forward to detach them.

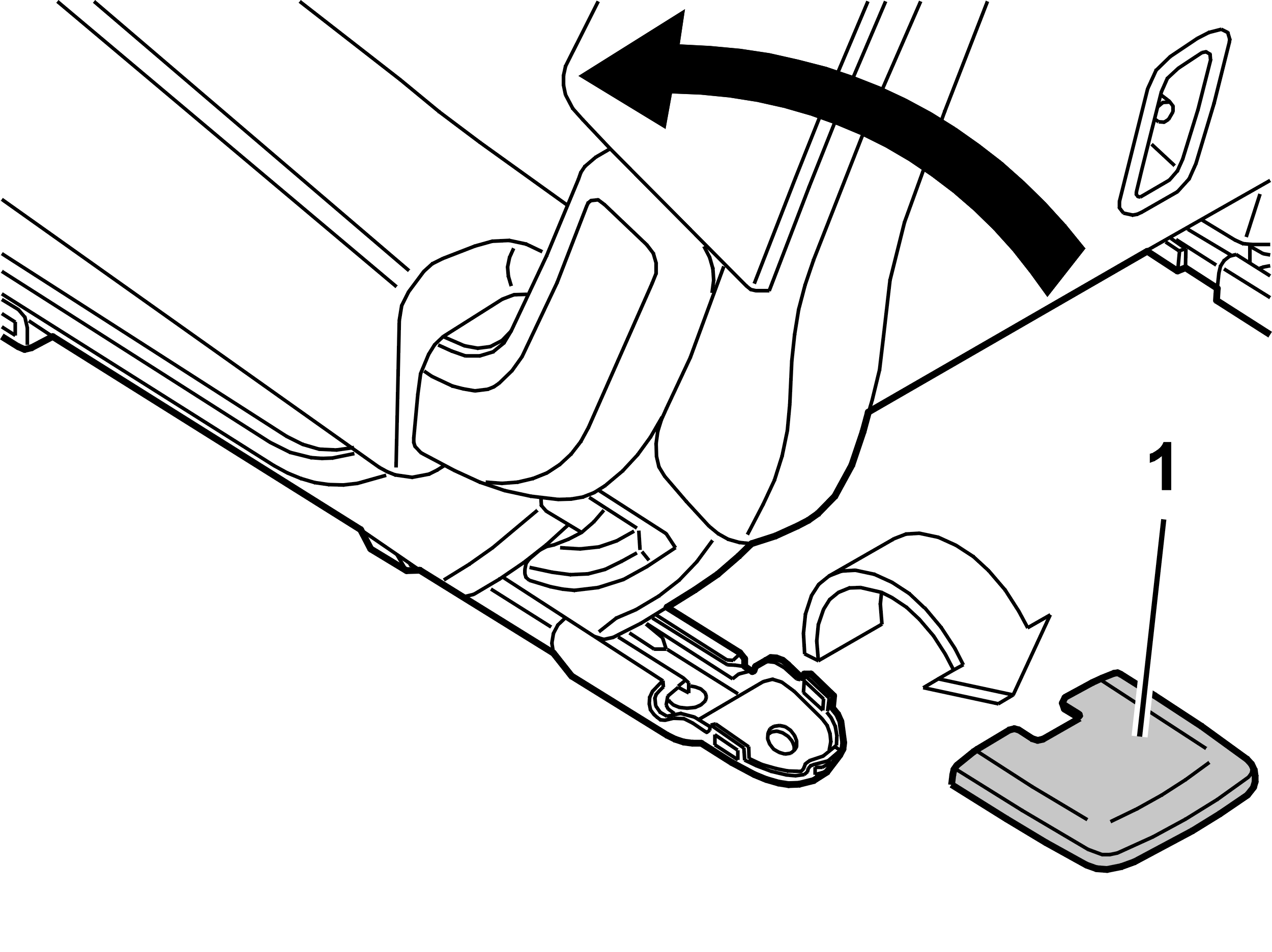

Fig 3: Identifying Removal Of Rear Side Pieces

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the rear side pieces upwards to detach them.

Remove the 4 screws.

Lift out the seat.
