Engine Coolant Heater Components

WARNING: This page is about a different car, the 2007 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

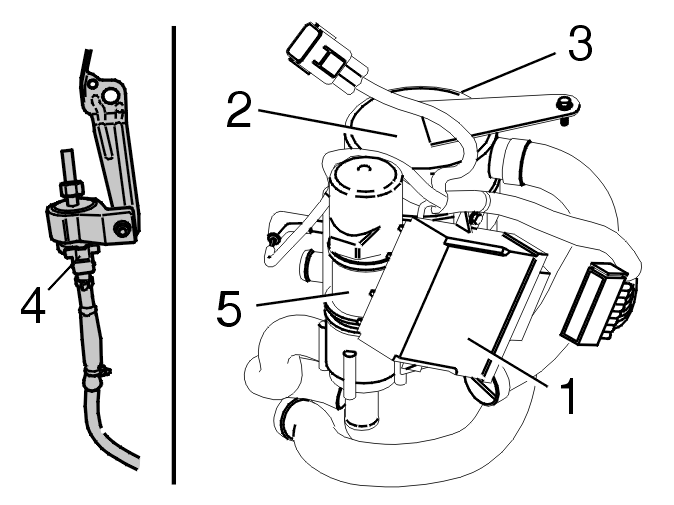

Fig 1: Identifying Engine Coolant Heater Components (1 Of 2)
GLL108340Courtesy of VOLVO CARS OF NORTH AMERICA.

Components:

  1. Control module
  2. Fan shroud
  3. Heat exchanger
  4. Fuel pump (FP) (in front of the fuel tank)
  5. Water pump.

Engine Coolant Heater Components, cont.

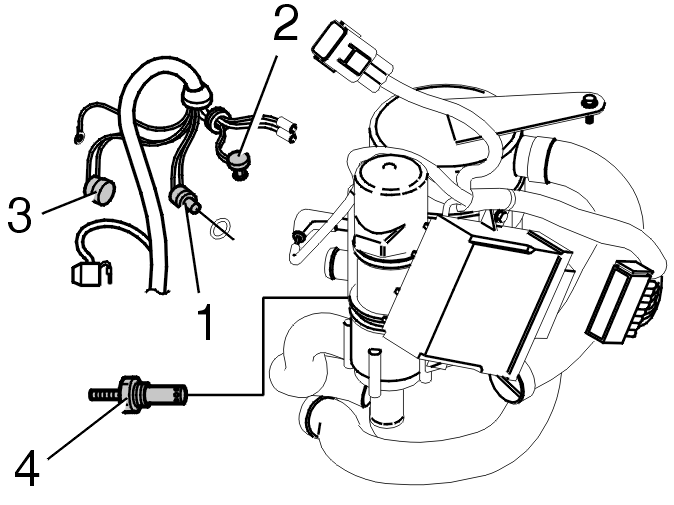

Fig 2: Identifying Engine Coolant Heater Components (2 Of 2)
GLL108341Courtesy of VOLVO CARS OF NORTH AMERICA.

Components on the heater:

  1. Coolant temperature sensor
  2. Flame sensor
  3. Overheat protection thermostat
  4. Glow plugs.
