Transferring the rear protective panel

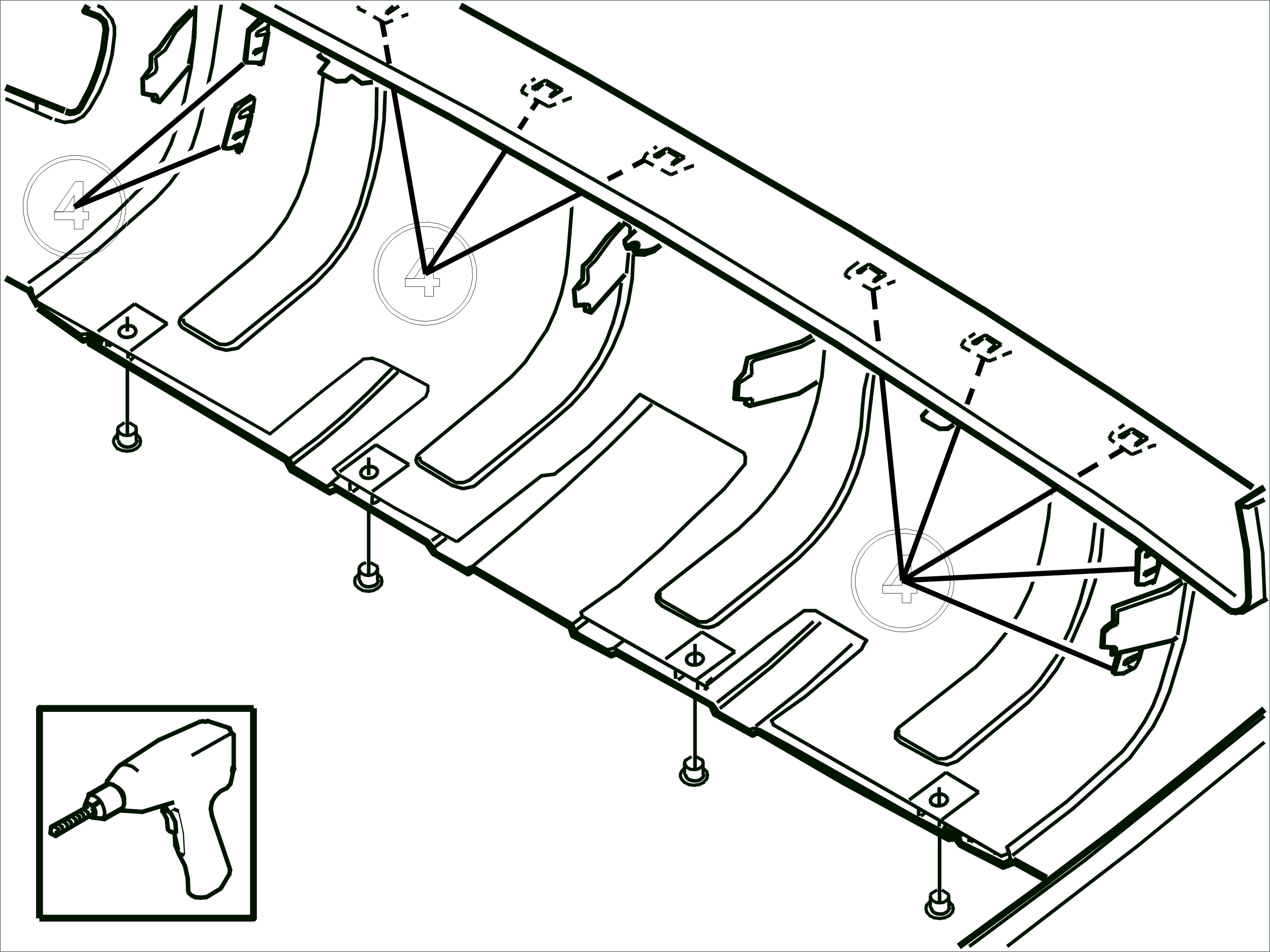

Fig 1: Identifying Released Hooks

Courtesy of VOLVO CARS OF NORTH AMERICA.

Removal

NOTE:

The rear section must be removed before the protective panel can be replaced.

Remove the 4 rivets. See: Removing rivet .

Release the 10 hooks (4)

Remove the protective panel.

Fig 2: Identifying Protective Panel And Rivet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Installation

NOTE:

Use an installation tool and rivets with spacers.

Fig 3: Identifying Protective Panel Hooked On To Casing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook the protective panel on to the casing.

Install the 4 rivets.
