Removing the front bumper

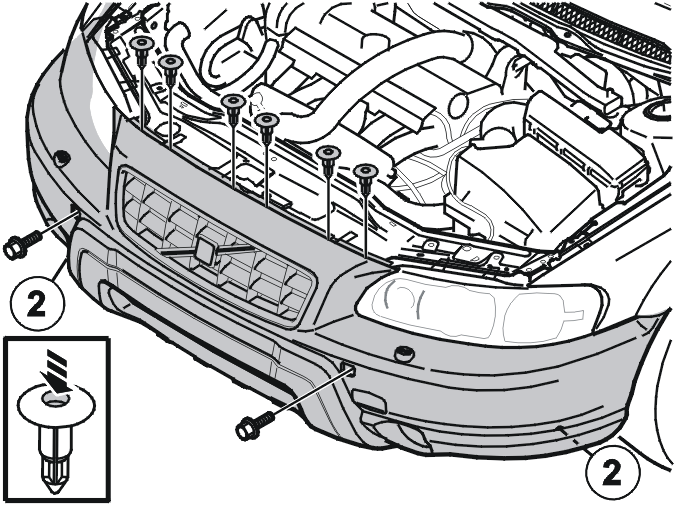

Fig 1: Identifying Front Bumper Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the 2 covers
• the 2 clips (2) on the underneath of the bumper casing
• the 2 screws.

HINT: Use butyl tape to secure the screws. Otherwise the screws are easy to lose.

Remove the 6 clips at the top edge of the bumper cover.

Fig 2: Identifying Screw Pressed So That Screw Head Bottoms Out

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the screw (3), 1 on each side, until the slide mounting releases from the bumper cover.

HINT: Press the screw so that the screw head bottoms out.

Fig 3: Identifying Bumper Pulled Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pull the bumper forward while pulling both the sides outwards so that the edges release from the slide mounting.

HINT: This operation is easier with two people.

Remove:

• the 2 connectors for the fog lamps
• the quick-release connector for the hose for the headlamp washer.
