Replace oil pressure sensor

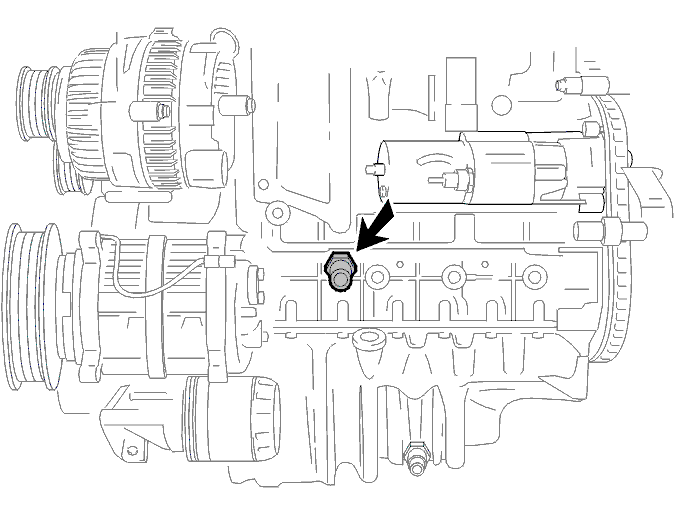

Fig 1: Oil Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

The oil pressure sensor is at the front of the motor between the dipstick and the starter motor.

• Disconnect the connector.
• Unscrew the sensor.
• Install in reverse order.
