Connecting the vacuum hose to the T-valve
Connecting the vacuum hose to the T-valve

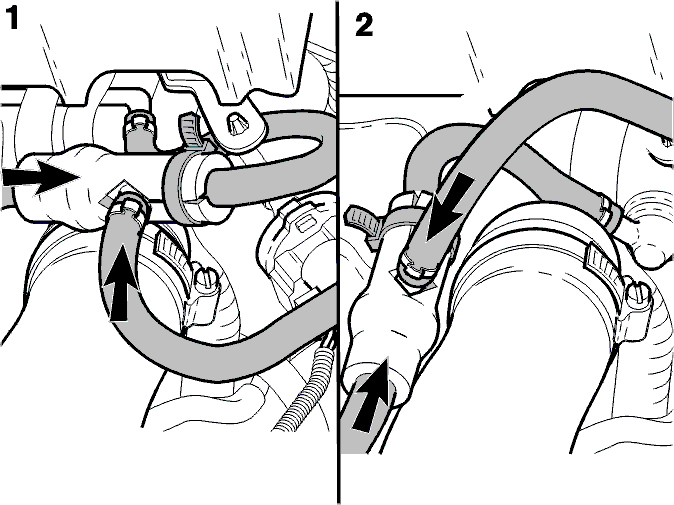

Fig 1: Identifying New Clamp, Vacuum Hose And T-Valve
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fit a new clamp and connect the vacuum hose to the T-valve. Tighten the clamp.
Reposition the insulation over the T-valve and secure it with a tie strap.
Courtesy of VOLVO CARS OF NORTH AMERICA.
