Replacing printed circuit board

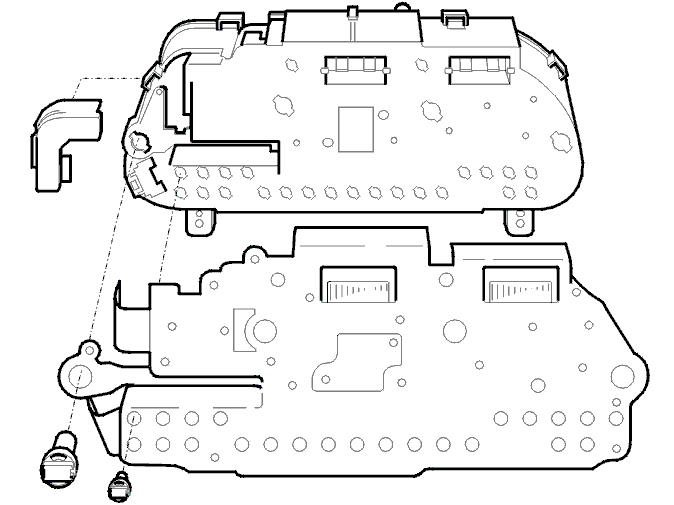

Fig 1: Identifying Replacement Of Printed Circuit Board

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the black protection at the top on the left. Disconnect the connector.
• Remove the temperature module (2 mounting screws).
• Remove the lamps.
• Remove the screws from the speedometer and the tachometer.
• Carefully remove the printed circuit board.

Ensure  that the correct buttons are in the correct position on the front.
