Installing the lock-up solenoid

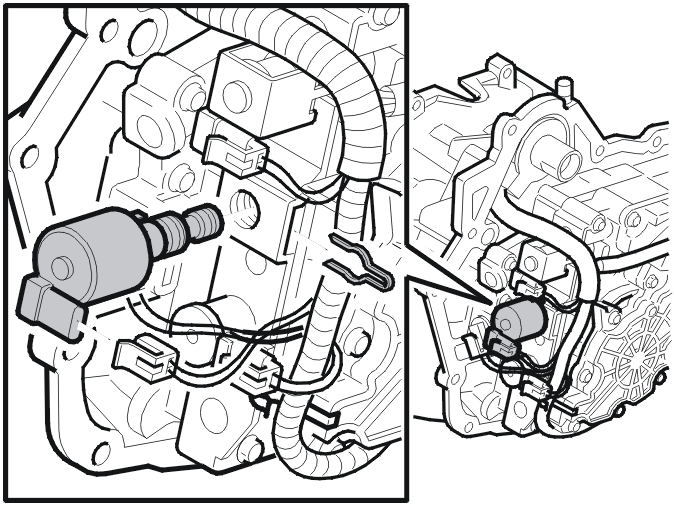

Fig 1: Identifying Removing/Installing Lock-Up Solenoid

Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply a little petroleum jelly to the O-rings.

Install:

• the solenoid. Turn and press in the solenoid a little so that it bottoms against the control system
• the spring clamp. Check that the spring clamp is locked
• the cable harness to the holder and the connector to the solenoid.
