Installing the engine pad on the engine mounting

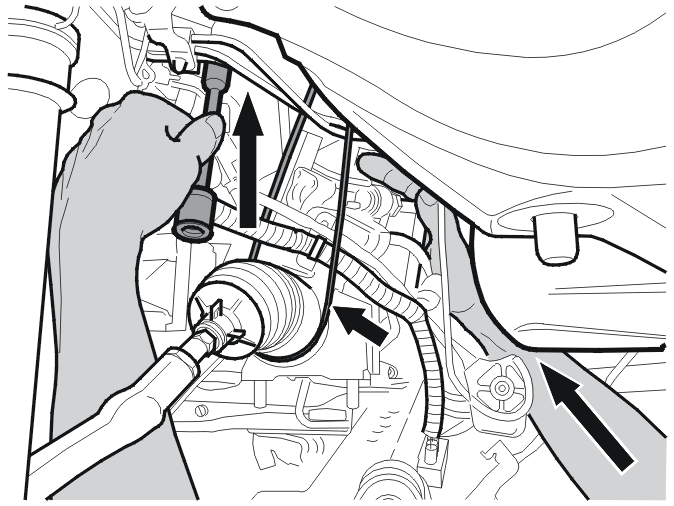

Fig 1: Identifying Installing Engine Pad On Engine Mounting

Courtesy of VOLVO CARS OF NORTH AMERICA.

Take out the nut, a short extension bar and a socket.

• Insert the nut into the socket so that it remains in place
• Insert the extension bar up to the collision protection system using your left hand
• Move up the engine pad to the engine mounting. Place the nut on the engine pad. Tighten the nut from above.
