Installing the drive shaft and the viscous coupling

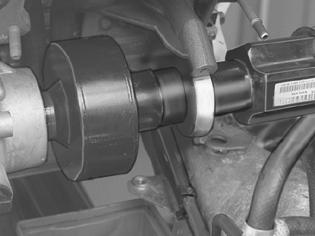

Fig 1: Identifying Installing Drive Shaft And Viscous Coupling

Courtesy of VOLVO CARS OF NORTH AMERICA.

Right-hand side:

Carefully align the viscous coupling in the transmission. Ensure that the sealing ring is not damaged.

Install:

• the drive shaft to the viscous coupling. Press the drive shaft so that the locking in the viscous coupling secures the drive shaft
• the bearing cap. Tighten to 25 Nm  .
