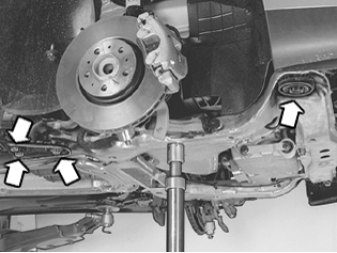

Removing the screws from the sub-frame support plates (both sides)
Preparations for removal of the wheel knuckle
- Position transmission jack (applied lightly) under the right-hand side of the sub-frame. 9985972
- Slacken off both the sub-frame screws completely. Screw the screws back in approximately 5 turns.
- Release the sub-frame so that it rests on the screws and the mobile jack.
