Removing the nuts and screws for the steering gear sub-frame

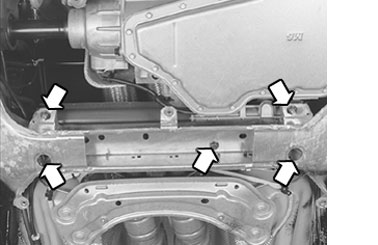

Fig 1: Identifying Steering Gear Sub-Frame Nuts And Screws
GLL109258Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the nuts and the screws from the steering gear sub-frame.
