Removing the left drive shaft from the gearbox

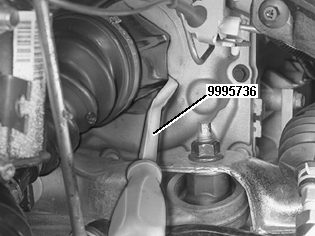

Fig 1: Identifying Drive Shaft Removal From Transmission Using Jimmy Tool 999 5736
GLL109282Courtesy of VOLVO CARS OF NORTH AMERICA.

Use jimmy bar 9995736 .

NOTE:

Do not damage the seal.

NOTE:

Do not under any circumstances  pull the drive shaft in such a way that could cause the joints to separate. The joints do not have axial pinions.
