Removing the collision protection system over the steering gear (right-hand drive cars)

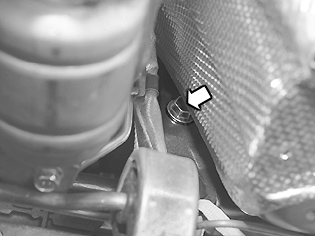

Fig 1: Identifying Collision Protection System Over Steering Gear

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Applies only to right-hand drive cars.

Lower the sub-frame slightly. Use the mobile jack.

Remove a screw and a screw and nut.

NOTE:

Carefully check that the collision protection system under the steering gear is free and not under stress.
