Removing the boost pressure pipe

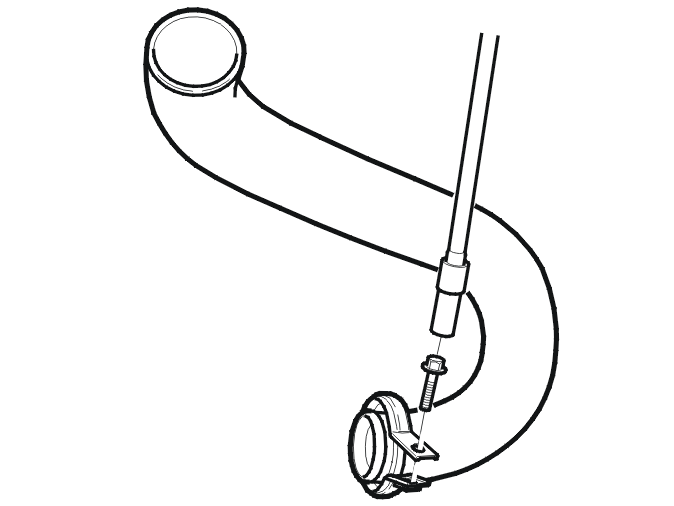

Fig 1: Identifying Boost Pressure Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the upper screw for the dip stick pipe.

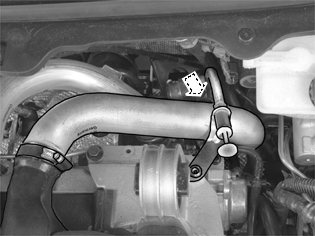

Fig 2: Identifying Upper Screw For Dip Stick Pipe

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Slacken off the screw for the clamp around the turbocharger pipe
• Open the clamp so that it is released from the turbocharger (TC)
• Pull the turbocharger pipe from the turbocharger (TC) (push the pipe to one side).
